⇨ Start Recording (Seconds) / Stop Recording (Seconds)
Start and Stop the Recorder
⇨ Other Sensors (Occurrences)
View Sensors Activity while Touch Screen
View Other Sensors
⇨ View the Track (Locations)
Displays the Travelled Path, Map, Location Characteristics and Step by Step History
View Track Path
⇨ Pause Recording (Seconds) / End Pause (Seconds)
Temporary Suspend Recording / Restart the Recording

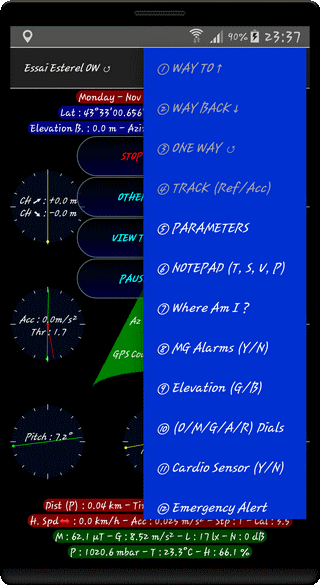

⇨ ① WAY TO ↑
For a Compound Track (CT), WAY TO Choice (TO ↑)
⇨ ② WAY BACK ↓
For a Compound Track (CT), WAY BACK Choice (BK ↓)
⇨ ③ ONE WAY ↺
For a Simple Track (ST), ONE WAY Choice (OW ↺)
⇨ ④ TRACK (Ref/Acc)
Choice of Reference or Access Track
⇨ ⑤ PARAMETERS
Eventually, change some parameters (Transport, Weather, Distance Model..)
See Tuning Parameters
⇨ ⑥ NOTEPAD (T, S, V, P)
Add Medias (Texts, Sounds, Videos, Photos) while Track Recording
See Using Notepad
⇨ ⑦ Where am I ?
Ask for the Place Address (in the City)
Take care, necessity to be connected to the GSM Network
Vocal Announcement of Address or Place
⇨ ⑧ MG Alarms (Y/N)
Allow the Sound Alarms for Magnetism and Gravity
⇨ ⑨ Elevation (G/B)
View GPS or BAROmeter Elevation and Global or Cumulative Heights
AND
Global Height (H➚➙➘) or Cumulative Height (H↑↓) on the Left Top Dial (+/-)
⇨ ⑩ (O/M/G/A/R) Dials
Change 3 Bottom Dials with Orientation/Magnetism/Gravity/Acceleration/Rotation Angles (3 Axis)
Temporarily View Magnetic Field Alarm Threshold (µT) and Gravity Field Threshold (m/s2)
⇨ ⑪ Cardio Sensor (Y/N)
Running Heart Rate Sensor (must be paired before)
⇨ ⑫ Emergency Alert
Send an Accident or Severe Fall Alert Message
The Received Message will indicate User Geographic Position, Elevation and Location
This function is not automatic and asks to be aware
The User can add a Description
⇨ ⑬ Audio/Video/Photo... (8 Possibilities)
Initialize Permanent Audio (LQ/HQ), Video (LQ), Time Lapse, Photos (Fixed Rythm)
Allow to Initialize the following Functions (See Parameters) :
- Low Quality Audio (Monophonic Narrow Band) for Conversation Noises
- High Quality Audio (Stereophonic Broad Band) for Nature Noises, Forest and Mountain..
- Low Quality Video (SD) for Long Duration Videos
- Time Lapse (Recurrence = 10 Seconds)
- Recurrent Photos with Noise Measurements
- Recurrent Photos with Low Quality Audio
- Recurrent Photos with High Quality Audio
- Default Position : Permanent Noise Level Calculation (dB)
⇨ Without Heart Rate Sensor
First Long Touch = With Speed Alarm + Threshold Display (km/h)
Screen Touch = Speak the Moving Speed (km/h and Tenth)
Second Long Touch = Without Speed Alarm
⇨ With Heart Rate Sensor
First Long Touch = With Heart Alarm + Threshold Display (bpm)
Screen Touch = Speak Heart Rate (bpm)
Second Long Touch = With Speed Alarm + Threshold Display (km/h)
Screen Touch = Speak the Moving Speed (km/h and Tenth)
Third Long Touch = Without Speed Alarm and without Heart Alarm
⇨ With MG Alarms
First Long Touch = Alarms coming from Ground (Vertical Z Axis)
Second Long Touch = MG Alarms coming from Right or Left (Lateral X Axis)
Third Long Touch = MG Alarms coming from Front or Back (Frontal Y Axis)
Fourth Long Touch = MG Global Alarms (Resultants)
Before Pressing START RECORDING :
⇨ Choose WAY TO, WAY BACK or ONE WAY
⇨ Choose Reference/Access (Access Trip to the Starting Point)
⇨ Choose Permanent Audio/Video/Photo Modes (8 Possibilities)
⇨ Tune the Parameters (Elevation, Weather...) if Modifications according to the Preferences
⇨ Activate occasionally the Heart Sensor
⇨ Disconnect the WIFI for the Best Results
⇨ Verifying GPS only is selected in Parameters
⇨ Verifying the Satellite is detected (Geographical Positions different of 0)
⇨ The Best Results will be obtained when WIFI is deactivated
⇨ Link to the Site for Initialization of Barometer Elevation
Default Choice :
⇨ Reference Simple Track, No Audio and No Video, No Heart Rate, Preferences Parameters, Spatial Mode
While RECORDING is ON (NORMAL MODE), you can :
⇨ See the Position on a Map and the History of the Track
⇨ Control Sensors State
⇨ Light OFF the Screen and Light ON at every moment
⇨ Engage a Pause
⇨ Activate the Notepad, take Photos, Videos, Record Sounds or some Writing
⇨ Record some Sounds with 2 Qualities (Voice or Complex Noise)
⇨ Ask the Address of a Location (City). This gives, as well, the Difference of Height
⇨ Change the View of 3 Angular Position Bottom Dials
⇨ Activate/Deactivate MG Alarms
⇨ Send an Emergency Alert to your Personal Internet Address
⇨ Display GPS or Barometer Elevation
USER'S RESTRICTIONS (PERMANENT AUDIO/PHOTO/VIDEO)
PERMANENT VIDEO MODE
⇨ Deactivated Notepad
⇨ Unavailable Map View
⇨ Pause Function not Recommended
PERMANENT PHOTO MODE
⇨ The Audio Mode is the One for Noise Measurement
PERMANENT AUDIO MODE
⇨ Activated Notepad with Possibility of Photos
and Texts Input
Available Map View
IMPORTANT
⇨ A WAY TO Track must be followed by a WAY BACK Track
There is a first WAY TO Record, followed by a STOP Recording
and a second WAY BACK Record followed by a STOP Recording
(For Example Trips recorded at different Dates)
The Track Recording is made in the Opened Group Folder (AREA NAME)
Default Folder or Group Name is AREAS
HOLDING THE DEVICE
⇨ Horizontally in the Hand, Screen to the Sky (HPF) automatic
It's the Best Position for Magnetic Detection from Ground
and the Best also for Location Accuracy (3 meters)
⇨ Vertical in the Hand, Top Edge to the Sky (VPF) automatic in Permanent Video
⇨ See the Other Positions (Not Automatic) in Parameters Section
