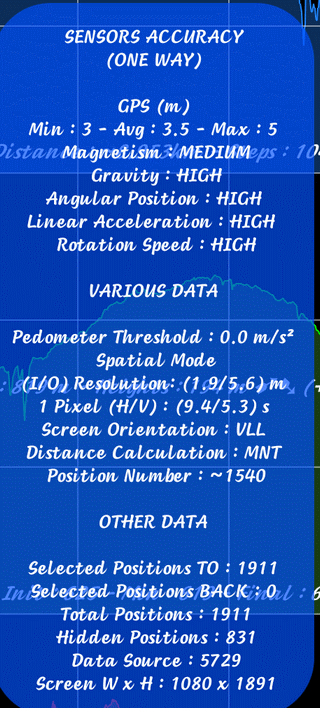

⇨ Title Of Display (Kind of Track)
Simple Track ST (ONE WAY)
Compound Track CT (TO and BACK)
Compound Track CT (TO) or Compound Track CT (BACK)
⇨ GPS LOCALIZATION ACCURACY (m)
Minimum, Average and Maximum Values (meters)
An Average ~3 Meters GPS Accuracy is Excellent
⇨ MAGNETIC MESUREMENTS ACCURACY (Micro-Tesla)
Low, Medium or High
⇨ GRAVITATIONAL MEASUREMENTS ACCURACY
Low, Medium or High
⇨ ANGULAR MEASUREMENTS ACCURACY
Low, Medium or High
⇨ ACCELEROMETER MEASUREMENTS ACCURACY
Low, Medium or High
⇨ VIBRATIONS MEASUREMENTS ACCURACY
Low, Medium or High
⇨ Recall Tuning of Pedometer Threshold (m/s2)
⇨ Recall Recording Mode (Spatial or Temporal)
⇨ Resolution (I/O) : Input/Output Resolution (m or s)
⇨ Temporal Resolution Equivalent (Horizontal/Vertical) in Seconds
⇨ How the Device was Kept : HPF, VPF...
⇨ Distance Calculation Method (Mountain or Plain) that is to say MNT or PLN
⇨ Position Number of the Cursor
Can be Used to refind a Location with the Guiding Functions
⇨ Number of Selected Positions in the WAY TO Track
⇨ Number of Selected Positions in the WAY BACK Track
⇨ Total Number of Selected Positions in WAY TO + WAY BACK Tracks
⇨ Number of Hidden Positions
⇨ Number of Points in the Data Source
⇨ Screen Definition (Width x Height) in Pixels

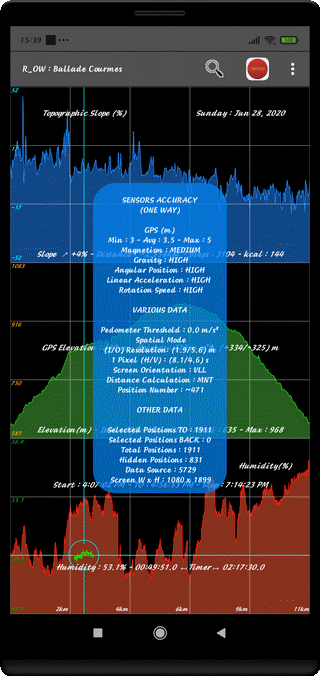

⇨ Activate this Function with the Menu ❏ (PERF/POS/ENV)
⇨ Light OFF the Analysis Window with the BACK Control (↶ )
⇨ Or Touch the Screen Outside of this Window
⇨ To Decrease the Number of Hidden Points, Turn the Tablet in Landscape Position !
⇨ The Tablet used in Development Phase has a 2560x1600 Pixels Resolution
⇨ The Cell Phone used to Record the Tracks has a 1920x1080 Pixels Resolution
⇨ Its Weight (130g) and its Size (136.6x69.8x7.9 mm) are ideal
